VP 415
Warning Stripe Tape

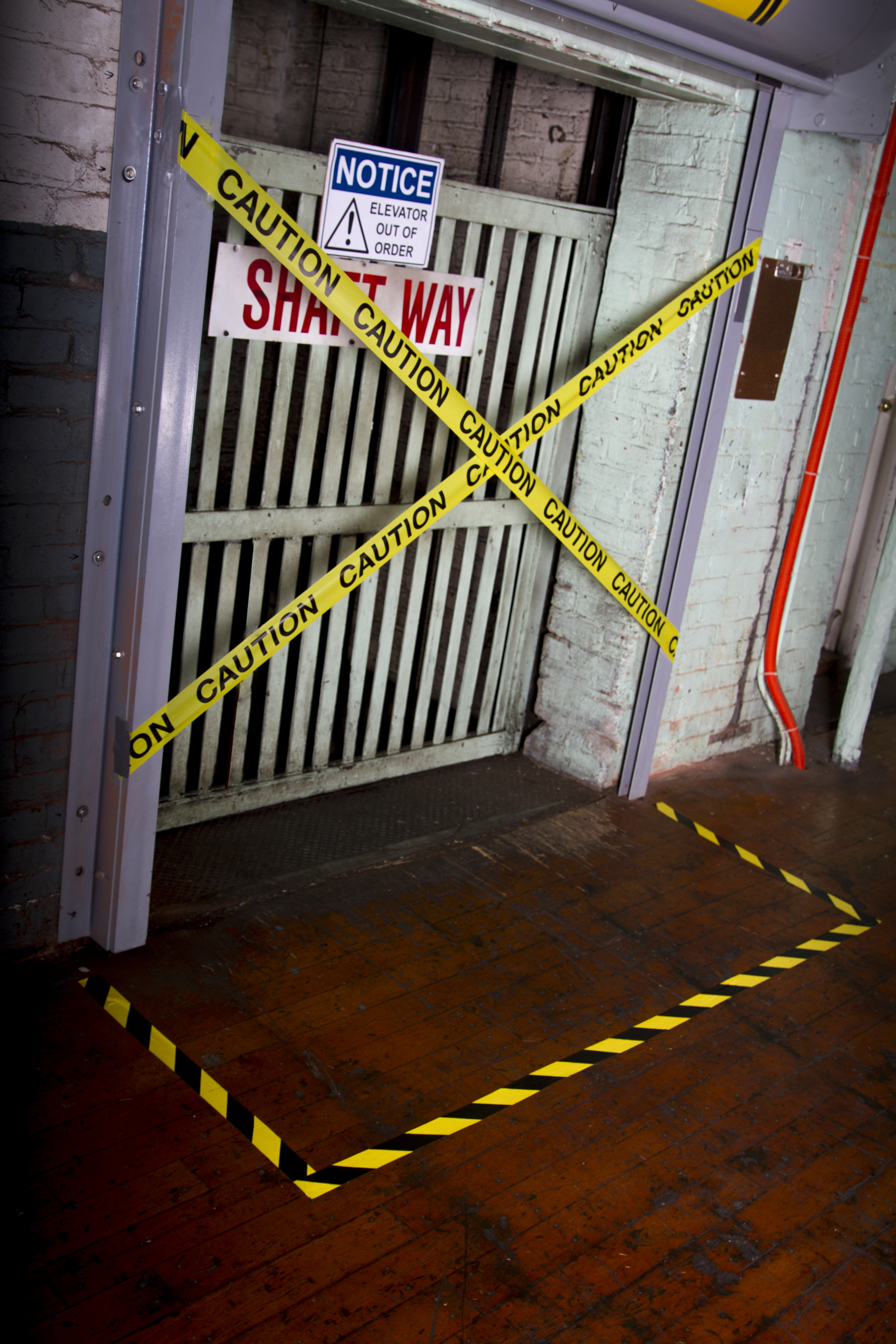

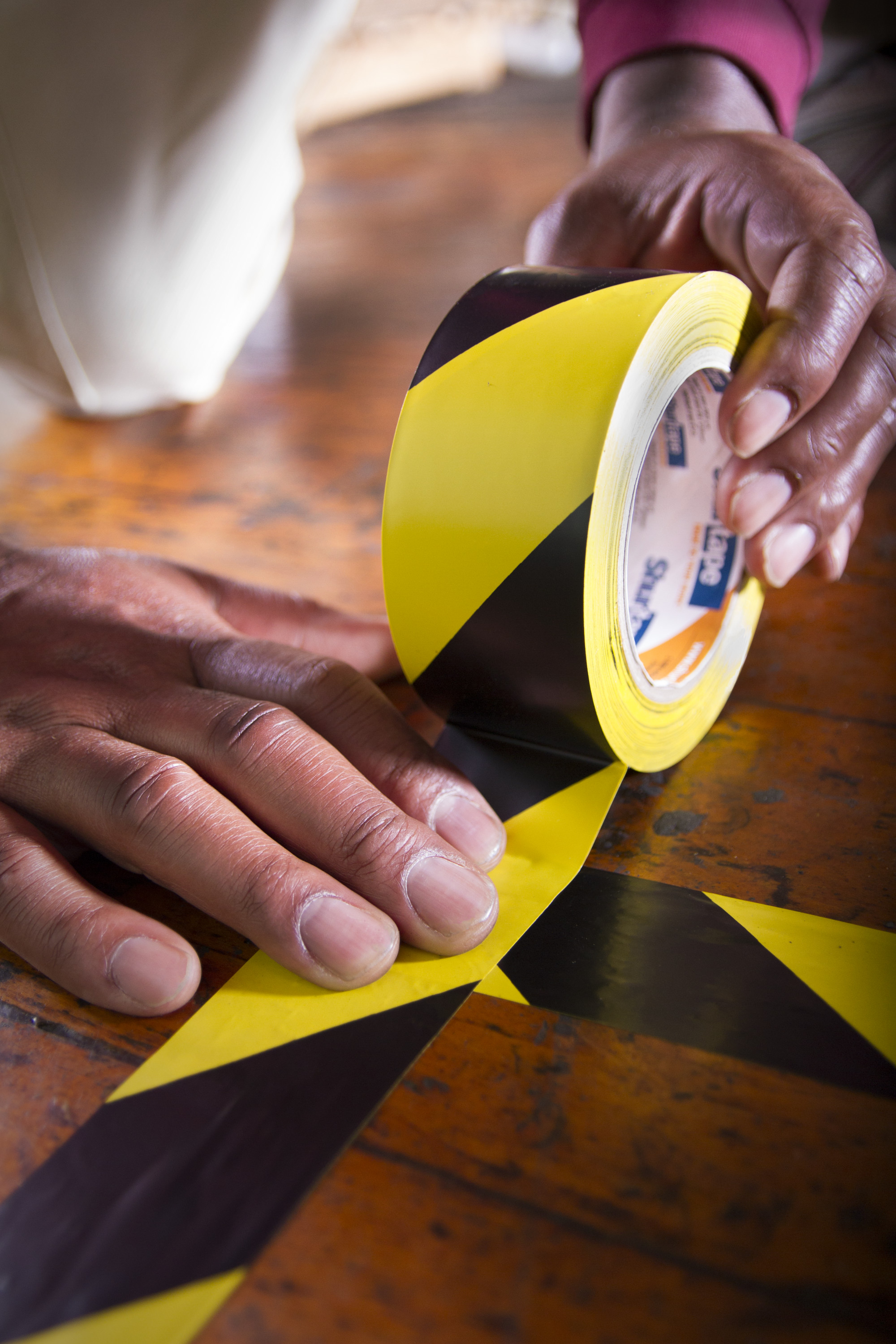

An SPVC film warning stripe tape used for lane marking and identification of safety zones and hazard areas. VP 415 is constructed with a flexible backing that is resistant to abrasion, UV light, acid, alkalides, oils, moisture, humidity and corrosion, and meets OSHA requirements for hazard markings.
VP 415
Warning Stripe Tape
An SPVC film warning stripe tape used for lane marking and identification of safety zones and hazard areas. VP 415 is constructed with a flexible backing that is resistant to abrasion, UV light, acid, alkalides, oils, moisture, humidity and corrosion, and meets OSHA requirements for hazard markings.
- General purpose grade warning stripe tape
- Resistant to abrasion, UV light, acid, alkalides, oils, moisture, humidity and corrosion
- Meets OSHA requirements for hazard markings
Technical data for VP 415
Sizes & Colors
Colors Available
| Standard Widths | 1.96 in 50 mm |
|---|---|
| Standard Lengths | 36 yd 33 m |
Construction
| Adhesive | Natural rubber adhesive |
|---|---|
| Backing | Striped, stabilized, plasticized, soft polyvinylchloride film (SPVC) |
Applicable Standards
| CID A-A-1689B, Type 1, Class 2 |
Properties
| Adhesion to Stainless Steel | 12 oz/in width 1.31 N/10 mm |
|---|---|
| Elongation | 200% 200% |
| Standard Core Size | 3 in |
| Service Temperature Max | 140 F 60 C |
| Service Temperature Min | 20 F -7 C |
| Tensile | 15 lbs/in width 26.3 N/10 mm |
| Thickness | 6.6 mils 0.17 mm |
Storage & Usage Conditions
Tape should be stored in its original packaging in a cool, dry area away from direct sunlight and should be used within 12 months of date of shipment. Surfaces to which tape is applied should be clean, dry and free of grease, oil or other contaminants.
Physical and performance characteristics shown above are obtained from tests recommended by PSTC, ASTM, government agencies or Shurtape Technologies, LLC, Quality Assurance and Technical Service departments and do not represent a guarantee of product performance. Individual rolls may vary slightly from these averages. The user should determine whether the product is fit for a particular purpose and is suitable for the user’s method of application before use.
