TG 356
Premium Performance Grade Adhesive Transfer Tape

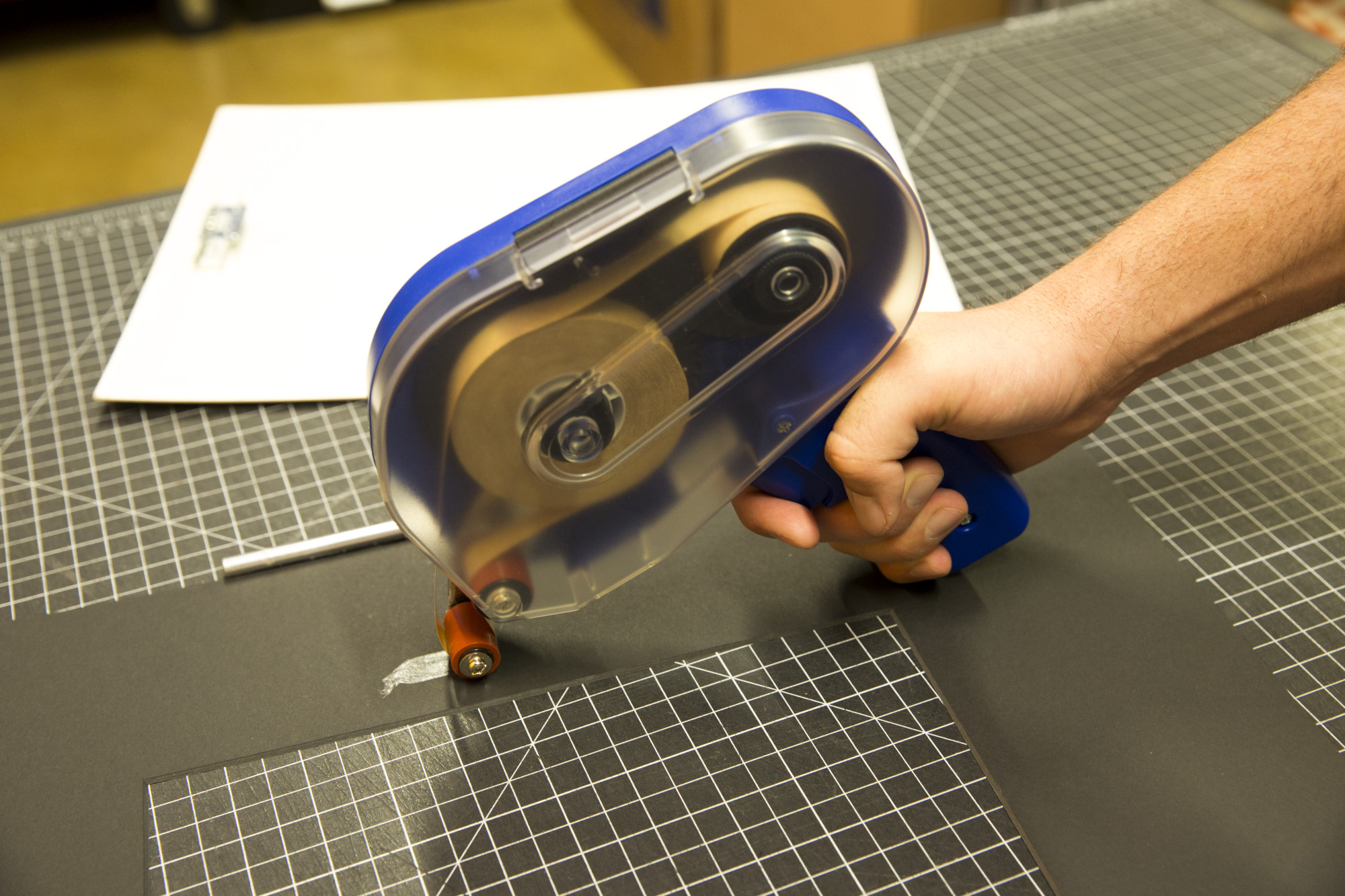

Premium performance grade adhesive transfer tape for mounting, holding, joining and splicing various substrates, including paper, cardboard, textiles, plastics, leather, wood, glass and painted surfaces. Quick and easy to use, TG 356 is reverse wound on a 1-inch I.D. core and can be used with an adhesive transfer gun to make just about any surface self-adhesive.
TG 356
Premium Performance Grade Adhesive Transfer Tape
Premium performance grade adhesive transfer tape for mounting, holding, joining and splicing various substrates, including paper, cardboard, textiles, plastics, leather, wood, glass and painted surfaces. Quick and easy to use, TG 356 is reverse wound on a 1-inch I.D. core and can be used with an adhesive transfer gun to make just about any surface self-adhesive.
- Premium performance grade adhesive transfer tape
- Eliminates the clean-up and drying time associated with liquid adhesives
- Maintains adhesion characteristics in normal and severe environmental conditions
- Extremely conformable
- Resists humidity, most solvents and UV light
Technical data for TG 356
Sizes & Colors
Colors Available
| Standard Widths | 0.47 in, 0.75 in 12 mm, 19 mm |
|---|---|
| Standard Lengths | 36 yd 33 m |
Construction
| Liner | Non-contaminating, siliconized, tan, paper release liner |
|---|---|
| Adhesive | Unsupported, permanent, dry acrylic-based adhesive |
Applicable Standards
| NA |
Properties
| Standard Core Size | 1 in |
|---|---|
| Adhesion to Stainless Steel | 32 oz/in width 3.50 N/10 mm |
| Service Temperature Max | 250 F 121 C |
| Service Temperature Min | -60 F -51 C |
| Thickness - With Liner | 5.5 mils 0.14 mm |
| Thickness - Without Liner | 2.0 mils 0.05 mm |
Storage & Usage Conditions
Tape should be stored in its original packaging in a cool, dry area away from direct sunlight and should be used within 12 months of date of shipment. Surfaces to which tape is applied should be clean, dry and free of grease, oil or other contaminants.
Physical and performance characteristics shown above are obtained from tests recommended by PSTC, ASTM, government agencies or Shurtape Technologies, LLC, Quality Assurance and Technical Service departments and do not represent a guarantee of product performance. Individual rolls may vary slightly from these averages. The user should determine whether the product is fit for a particular purpose and is suitable for the user’s method of application before use.
