AF 099
UL 181A-P/B-FX Listed/Printed Aluminum Foil Tape

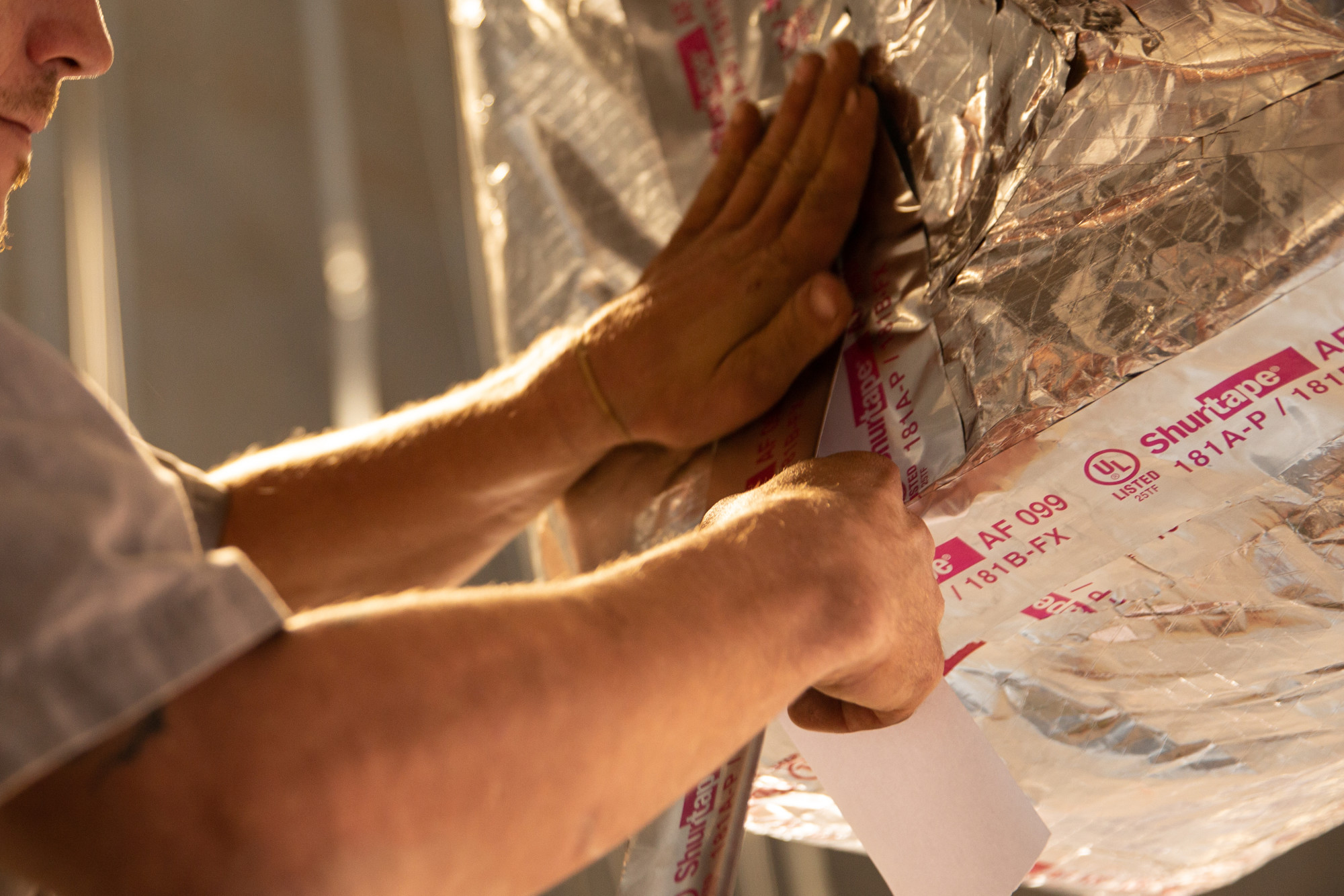

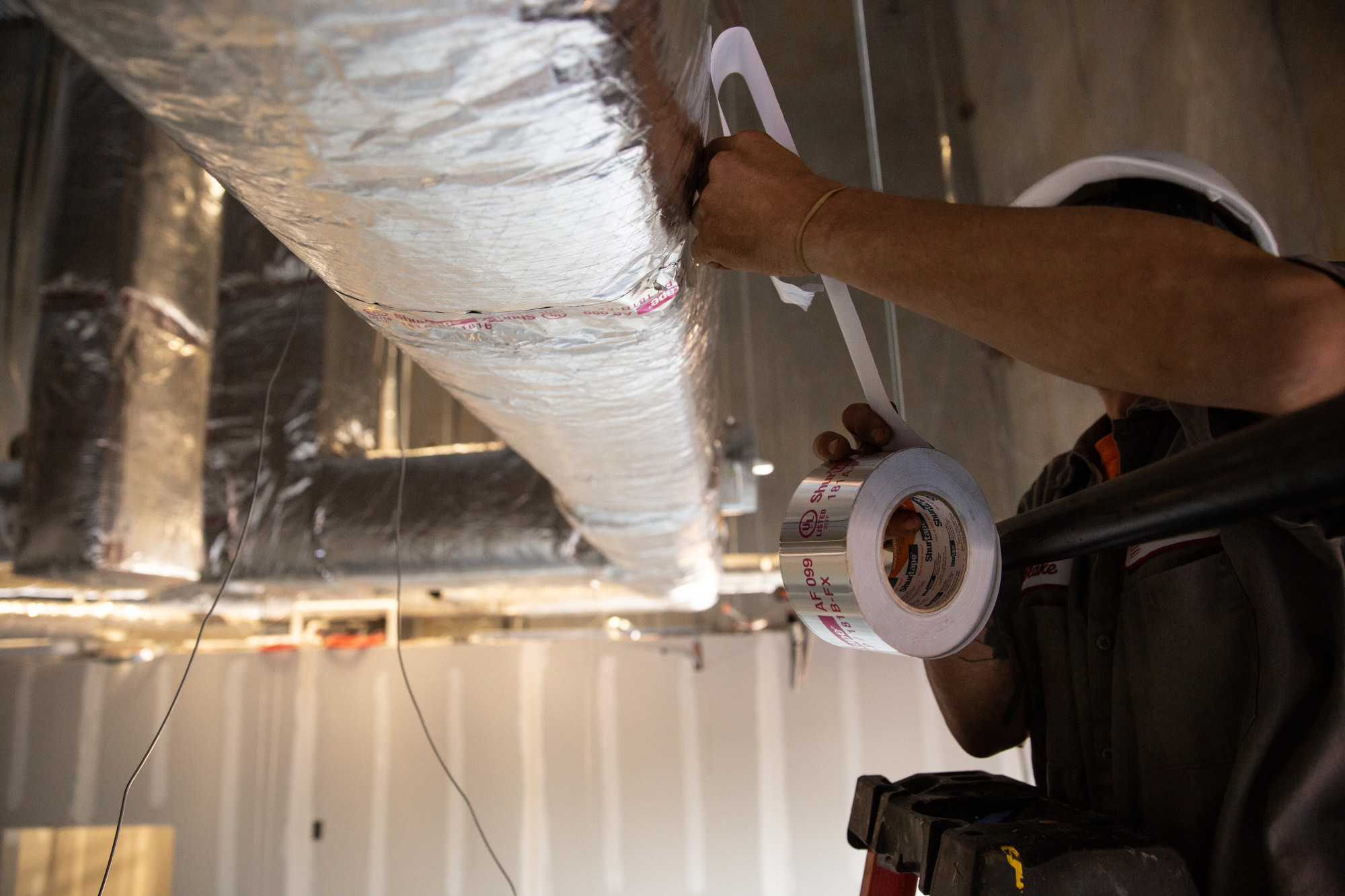

Aluminum foil HVAC tape for joining and sealing joints, connections and seams on rigid fiberglass ductboard and flexible air duct, and as a UL 181A-P listed product, can also be used in place of mechanical fasteners on rigid ductboard. UL 181A-P/B-FX Listed and printed, AF 099 delivers full system closure by forming airtight bonds on joints and seams in temperatures ranging from -20 F to 260 F and in humid conditions.
AF 099
UL 181A-P/B-FX Listed/Printed Aluminum Foil Tape
Aluminum foil HVAC tape for joining and sealing joints, connections and seams on rigid fiberglass ductboard and flexible air duct, and as a UL 181A-P listed product, can also be used in place of mechanical fasteners on rigid ductboard. UL 181A-P/B-FX Listed and printed, AF 099 delivers full system closure by forming airtight bonds on joints and seams in temperatures ranging from -20 F to 260 F and in humid conditions.
- UL 181A-P/B-FX listed and printed aluminum foil tape
- Linered
- Airtight performance on rigid fiberglass ductboard and flexible air duct
- Flexible and easy to use
- Superior stability during extreme fluctuations in temperature
Technical data for AF 099
Sizes & Colors
Colors Available
| Standard Widths | 2.5 in, 2.83 in 63.5 mm, 72 mm |
|---|---|
| Standard Lengths | 60.1 yd 55 m |
Construction
| Liner | Non-contaminating, siliconized, flat, white, paper release liner |
|---|---|
| Adhesive | Acrylic-based adhesive |
| Backing | 2 mil, dead-soft aluminum foil |
Applicable Standards
| UL 181A-P |
| UL 181B-FX |
| UL Listed |
| FSI 25/SDI 50 |
| Tested in accordance with UL 723 |
Properties
| Adhesion to Stainless Steel | 70 oz/in width 7.66 N/10 mm |
|---|---|
| Elongation | 10% 10% |
| Standard Core Size | 3 in |
| Service Temperature Max | 260 F 127 C |
| Service Temperature Min | -20 F -29 C |
| Tensile | 33 lbs/in width 50.0 N/10 mm |
| Thickness - With Liner | 7.9 mils 0.20 mm |
| Thickness - Without Liner | 4.1 mils 0.10 mm |
Storage & Usage Conditions
Tape should be stored in its original packaging in a cool, dry area away from direct sunlight and should be used within 12 months of date of shipment. Surfaces to which tape is applied should be clean, dry and free of grease, oil or other contaminants.
Physical and performance characteristics shown above are obtained from tests recommended by PSTC, ASTM, government agencies or Shurtape Technologies, LLC, Quality Assurance and Technical Service departments and do not represent a guarantee of product performance. Individual rolls may vary slightly from these averages. The user should determine whether the product is fit for a particular purpose and is suitable for the user’s method of application before use.
